Utilities

The following python scripts are provided:

utility	purpose
dbbc3client.py	An interactive client for communicating with the DBBC3
dbbc3ctl.py	A general purpose tool to validate the state of the DBBC3 system or its sub-systems
dbbc3mon.py	A GUI tool for monitoring the DBBC3 (requires multicast)
dbbc3_powerlogger.py	Logs the DBBC3 power readings (requires multicast)
convert_powerlog_to_HDF5.py	Convert the DBBC3 power log files to HDF5 format
dbbc3_ppslogger.py	Logs the DBBC3 PPS delays (requires multicast)

dbbc3ctl.py

This script validates the state of the DBBC3 system.

Interactive Mode:

> ./dbbc3ctl.py 134.104.30.223
=== Trying to connect to 134.104.30.223:4000
Selecting commandset version: DBBC3Commandset_DDC_U_126
=== Connected
=== DBBC3 is running: mode=DDC_U version=126(221103)
=== Using boards: [0, 1]
Welcome to the DBBC3.  Type help or ? to list commands
(dbbc3ctl): ?
check recorder @host @interface
check sampler offset [all,0,1]
check sampler gain [all,0,1]
check sampler phase [all,0,1]
check timesync [all,0,1]
check synthesizer lock [all,0,1]
check synthesizer freq [all,0,1]
check bstate [all,0,1]
check pps
check system [all,0,1]
get version

Full system validation:

> ./dbbc3ctl.py 134.104.30.223
=== Trying to connect to 134.104.30.223:4000
Selecting commandset version: DBBC3Commandset_DDC_U_126
=== Connected
=== DBBC3 is running: mode=DDC_U version=126(221103)
=== Using boards: [0, 1]
Welcome to the DBBC3.  Type help or ? to list commands
(dbbc3ctl): check system all
...

[OK] === Checking sampler phases -
=== Checking board 0
[OK] === Checking 1PPS synchronisation < +- 200 ns - PPS delays: [16, 16] ns
[OK] === Checking time synchronisation of core board A - Reported time: 2023-01-24 12:53:38
[OK] === Checking synthesizer lock state of board A - Locked
[OK] === Checking GCoMo synthesizer frequency of board A - Freq=9000.000000 MHz
[WARNING][FAIL]/[WARN] === Checking IF power level on core board A - IF input power is too low. The attenuation should be in the range 20-40, but is 4
[RESOLUTION] Increase the IF power
...

Scripted Mode:

Execute a single command:

> ./dbbc3ctl.py -c "check synthesizer lock" 134.104.30.223

Execute multiple commands:

> ./dbbc3ctl.py -c "check synthesizer lock" –c "check synthesizer freq" 134.104.30.223

Execute commands multiple times (e.g. 10):

> ./dbbc3ctl.py -c "check synthesizer lock" –r 10 134.104.30.223

dbbc3mon.py

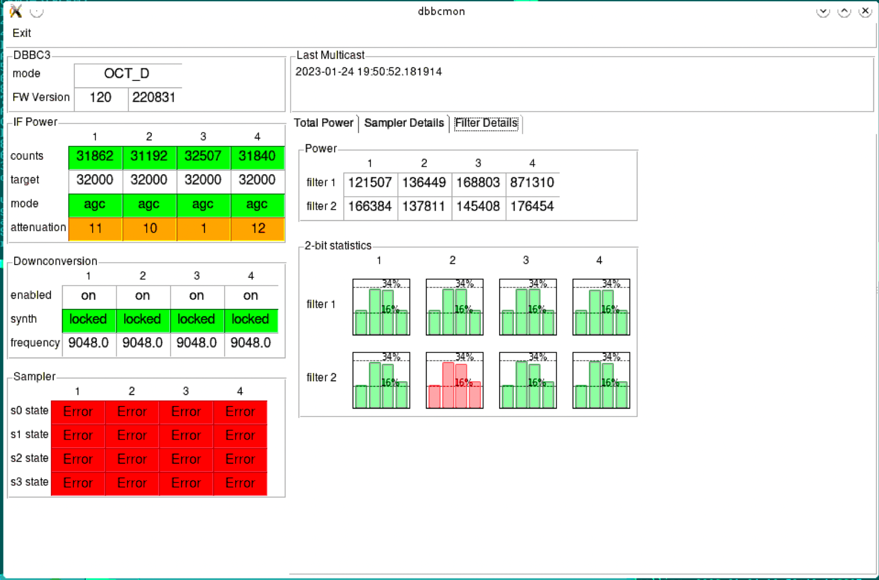

GUI tool for monitoring the DBBC3 state (not fully implemented yet)
